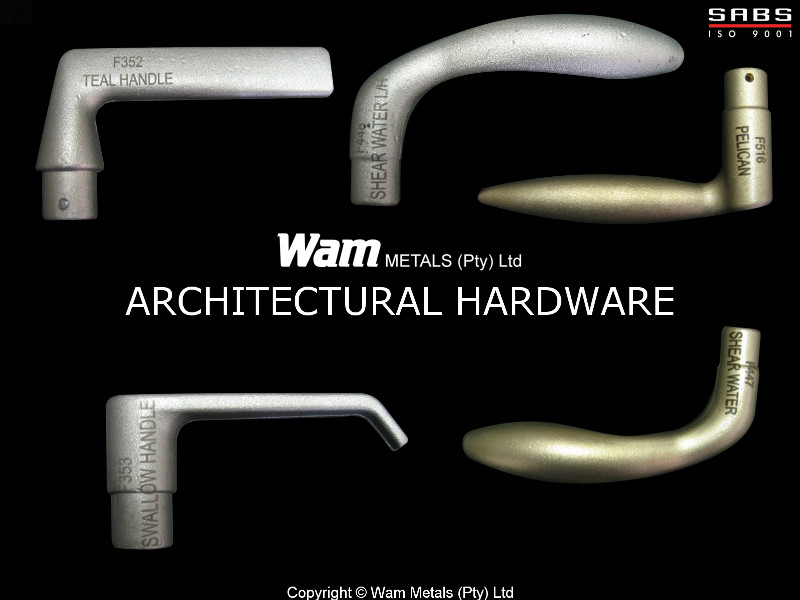

Architectural Hardware
Notice: All product images serve to illustrate our manufacturing capability and enquiries for products will be directed to our customers.
Sidebar
Products
Earthing Products Catalogue
Notice: All product images serve to illustrate our manufacturing capability and enquiries for products will be directed to our customers.
Electrical Products Catalogue
Notice: All product images serve to illustrate our manufacturing capability and enquiries for products will be directed to our customers.
Fire Catalogue
Notice: All product images serve to illustrate our manufacturing capability and enquiries for products will be directed to our customers.
Gas Catalogue
Notice: All product images serve to illustrate our manufacturing capability and enquiries for products will be directed to our customers.
General Catalogue
Notice: All product images serve to illustrate our manufacturing capability and enquiries for products will be directed to our customers.
For all Mining queries:

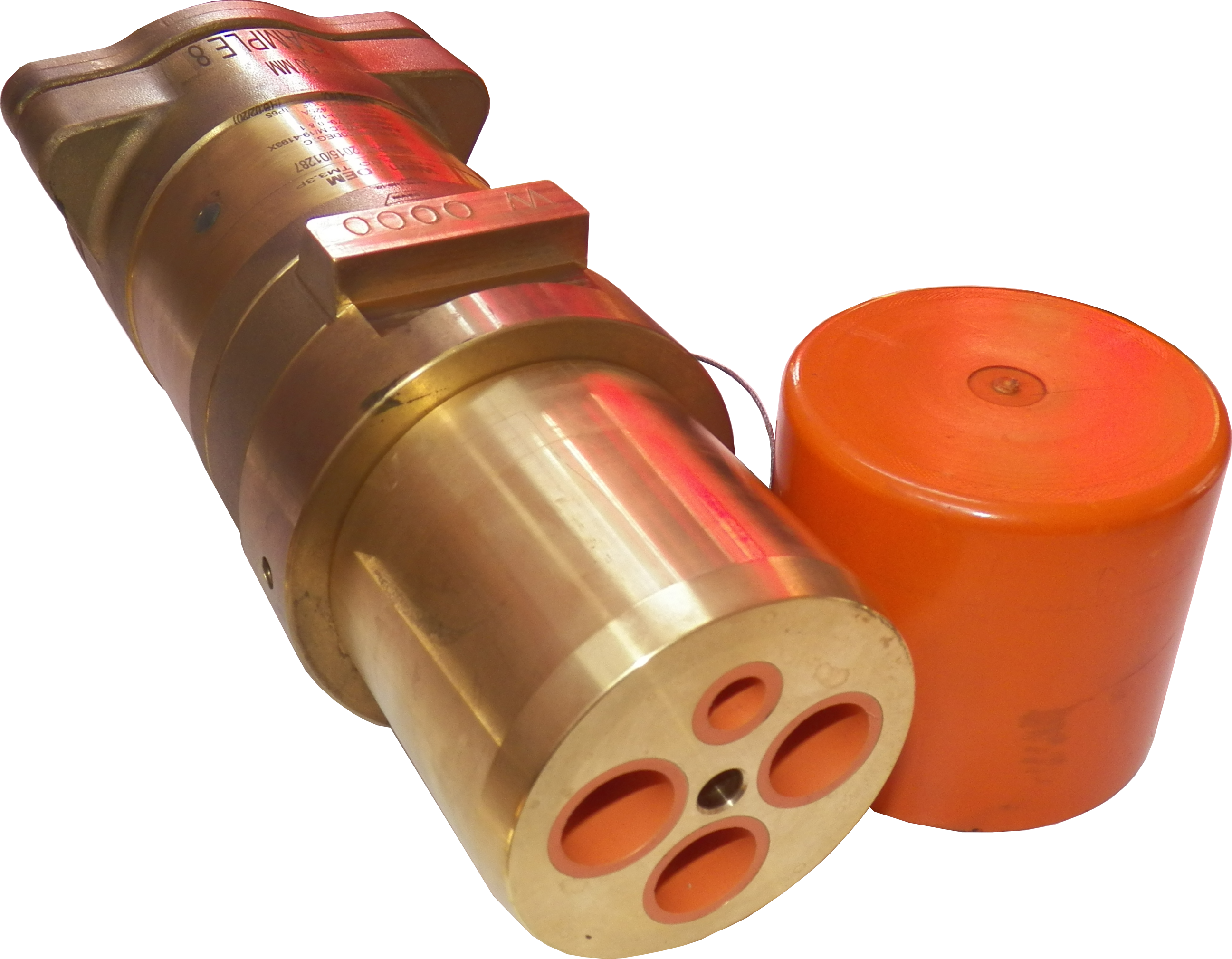

Plug and socket Catalogue
Notice: All product images serve to illustrate our manufacturing capability and enquiries for products will be directed to our customers.
Mining Products Catalogue
Notice: All product images serve to illustrate our manufacturing capability and enquiries for products will be directed to our customers.
Plug and socket Videos
How it's made - Plug and socket
Test - Impact strength of the 250 amp plug
Forging vs Casting
Forging vs Casting
Wam Metals (Pty) Ltd is a non-ferrous forging company which specialises in the art of forging. WAM is over 30 years old, over 30 years of perfecting the forging manufacturing process, over 30 years of experience.
What is forging?
Castings are manufactured by pouring molten metal into a sand mould, forging is an entirely different process which involves forging a hot billet to shape by force.
The forging process:
- A solid extruded section is taken in long lengths and cut into the required length billet.
- This cut billet is heated up to 650 degrees C.
- This heated billet is then placed into a forging die positioned in a forging press.
- The press is then activated and the forced impact of the press forms the forged product.
Note: It is important to note the following:
- Castings are susceptible to blow holes and or porosity.
- Forgings are 100% clear of any blow holes or porosity.
Main benefits of Forging
Forgings are much stronger:
Castings are poured as a liquid into or through moulds whereas forgings are hot-worked under pressure which yields higher strength and reliability. The Forging process causes recrystallization and refinement of the grain structure of the material being forged which leads to a homogenised grain structure; the homogenised grain structure makes the metal much stronger and less resistant to impact, shear and wear damage.
Forgings are more refined:
Castings do not have the grain flow or directional strength of forgings which allows for the possibility of metallurgical defects such as segregation and dendritic structures. Castings are susceptible to critical flaws like blowholes, porosity and shrinkage. Forging creates metal flow with compact grain structures and refines these conditions into a strong and very reliable product.
Forgings are more reliable:
Castings require very strict foundry practice and control. Defects are only detected once the metal has cooled, removed from the mould and cleaned and in most cases are only detected after machining.
Forgings with refined grain structure imparts high strength, ductility and resistance properties.
Forgings respond better to heat treatment:
Castings have alloy segregation and non-uniform cooling; this leads to inconsistent heat absorption during heat-treatment and results in warping and bending. Forgings are more uniform and respond predictably to heat-treatment which ensures dimensional stability.
Forgings are more cost effective with flexible production output:
Due to possible Casting flaws during the Casting process stricter process controls are needed which results in longer lead times while Forgings production runs are more adaptable and have shorter lead times.
Forgings are more economical to machine:
Castings are produced with excess allowances to reduce defects whereas forgings are produced with tighter tolerances to minimise material removal, leading to lower machining costs or eliminate the need for machining completely.

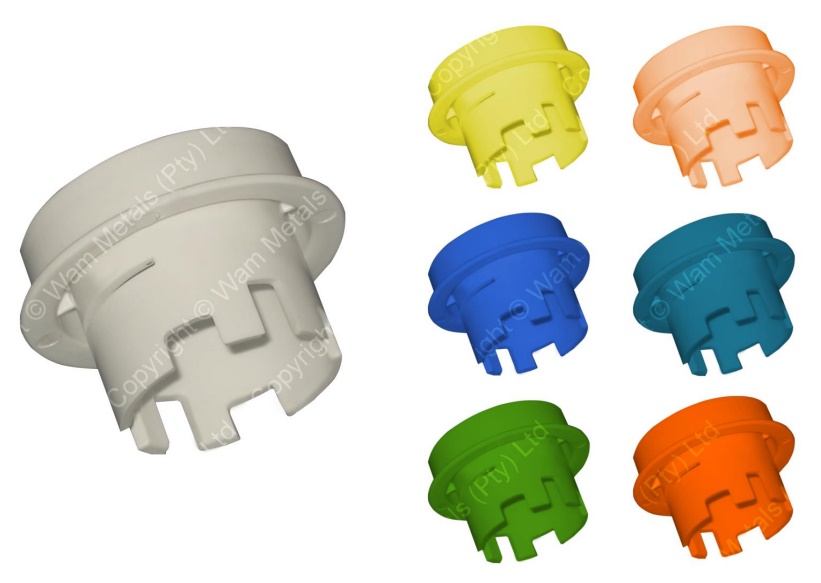

Plastic Products Catalogue
Notice: All product images serve to illustrate our manufacturing capability and enquiries for products will be directed to our customers.

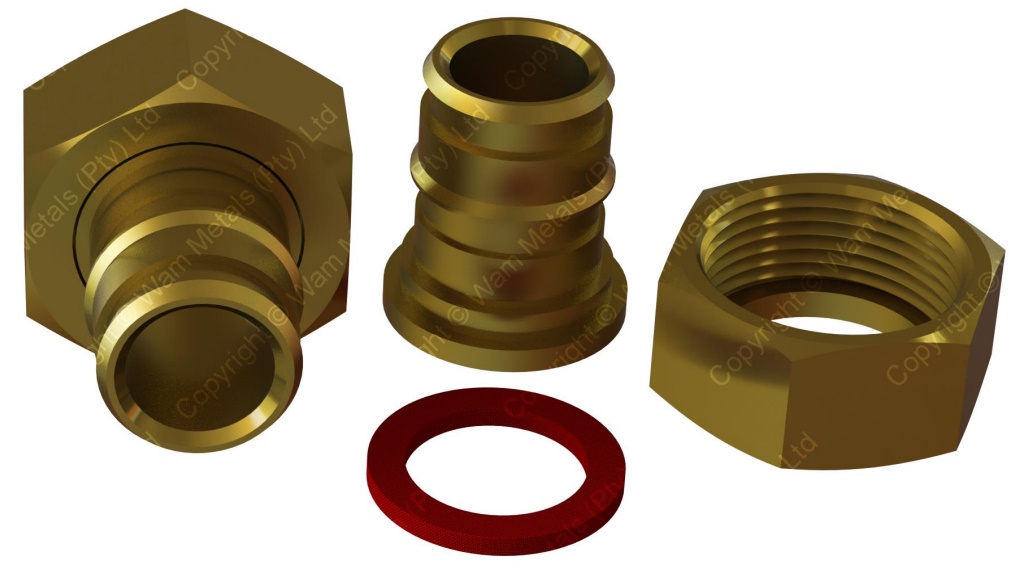

Plumbing Products Catalogue
Notice: All product images serve to illustrate our manufacturing capability and enquiries for products will be directed to our customers.
Wam Metals (Pty) Ltd was born in 1986. Today, it is a reputable, well known manufacturing and supply company which has a wide range of specialized non-ferrous, ferrous and plastic components servicing various market industries, both locally and abroad.
Wam Metals has a long standing and trusted track-record as a highly reliable, quality manufacturer and supplier of non-ferrous, ferrous and plastic components; which over the past 25 years have been installed throughout Transnet’s overhead national track systems. Wam Metals is the original equipment manufacturer (OEM) for overhead track components.
Our product range includes: specialized machined components for overhead transmission and earthing; electrical replacement parts; transformer parts; replacement parts for diesel and electric locomotives supplied direct to Transnet and various subcontracting companies.
Wam metals also offers customized solutions for product design of specific requirements in conjunction with Transnet freight rail engineering departments.
We supply to various construction companies, suppliers and directly to different Transnet Departments and we gladly invite you and your team to visit and evaluate our manufacturing plant and its facilities situated in 8 Barnsley street, Benoni Industrial. See the list of products that we supply below, with some example pictures of products.
For all Railway enquiries:
Swivel products
| Swivel Clip Assembly 161 | CEE-TND-0035 | 54000690 | M00011732 |
| Swivel Clip Assembly 107 | CEE-TND-0035 | NOT KNOWN | M00033594 |
| Swivel Clip Assembly 80 Catenary | CEE-TN-242 | 54002401 | |
| Swivel Clamp Retainer | 54005215 | ||
| Swivel Assembly | 54011428 | ||
| Swivel Clamp 107 Big Ball | CEE-TND-0033/TNB 66 | 54011591 | |
| Swivel Clip Stem | CEE-TND-29 | 54011631 | |
| Swivel Clamp 161 Big Ball | CEE-TN-264 | 54011643 | |
| Swivel Stem (Bottle Type) | CEE-TN-378 SHEET 3 | 54016950 | |
| Swivel Assembly | 540024163 | ||
| Swivel Clip Assembly 250 Mm Sq | BBB7932 | 54024288 | |
| Swivel Cheek Ass. 500 Feeder | BBC0903 | 54027826 | |
| Swivel Clip Assembly Catenary 160 | BBG1275 | ||
| Swivel Clamp 107 Small Ball | CEE-TND-0037 | 54028819 | |
| Swivel Clamp 161 Small Ball | CEE-TN-0330 | 54033583 | |
| Swivel Body | CEE-TND 1 | 54033611 | |
| Swivel Clamp 107 | CEE-TN-378 SHEET 2 | 54011983 |
Contact splice products
| Contact Splice 161 | CEE-TNB 21 AMENDMENT 3 | 54000754 | M00074544 |
| Contact Splice 107 | CEE-TN-405 AMENDMENT 4 | 54006827 |
Parallel Clamps
| Parallel Clamp Cu-Ni-Si 80/100-50 | CEE-TNB-0055 AMENDMENT 6 | 54000766 | |
| Parallel Clamp Cu-Ni-Si 80/100-80/100 | CEE-TNB-0055 AMENDMENT 6 | 54000791 | |
| Parallel Clamp Cunisi 250-50 | CEE-TNB-0055 AMENDMENT 6 | 54000843 | |
| Parallel Clamp Cu-Ni-Si 250-80/100 | CEE-TNB-0055 AMENDMENT 6 | 54000867 | |
| Parallel Clamp Cu-Ni-Si 250-160 | CEE-TNB-0055 AMENDMENT 6 | 54000880 | |
| Parallel Clamp Cunisi 250-250 | CEE-TNB-0055 AMENDMENT 6 | 54000907 | M00011733 |
| Parallel Clamp Cu-Ni-Si 160-50 | CEE-TNB-0055 AMENDMENT 6 | 54002728 | M00012752 |
| Parallel Clamp Cu-Ni-Si 160-80/100 | CEE-TNB-0055 AMENDMENT 6 | 54002753 | M00075634 |
| Parallel Clamp Cu-Ni-Si 160-160 | CEE-TNB-0055 AMENDMENT 6 | 54002777 | M00023267 |
| Aluminium Parallel Clamp 160-160 | BBB0376 | 54032504 | M00052130 |
| Aluminium Parallel Clamp 500-160 | BBG7987 | ||
| Aluminium Parallel Clamp 800-160 | BBG7988 | 54000603 | |
| Bimetal Parallel Clamp 160 Cu-50 Al | CEE-TNB-0094 AMENDMENT 3 | 54032363 | |
| Bimetal Parallel Clamp 160 Al-80/100 Cu | CEE-TNB-0094 AMENDMENT 3 | 54032375 | M00053466 |
| Bimetal Parallel Clamp160 Cu-160 Al | CEE-TNB-0094 AMENDMENT 3 | 54032387 | M00012274 |
| Bimetal Parallel Clamp 160 Cu-250 Al | BBD5138 | ||
| Bimetal Parallel Clamp 80/100 Cu-250 Al | WAM DRG. F745 | ||
| Bimetal Parallel Clamp 160 Cu-100 Al. | BBB4185 | 54033522 | |
| Bimetal Parallel Clamp 500 Al-160 Cu | CEE-TNB-0096 AMENDMENT 2 | 54016937 | M00011348 |
| Bimetal Parallel Clamp 800 Al-160 Cu | CEE-TNB-0093 AMENDMENT 2 | 54016925 |
Feeder Clamps
| Feeder Clamp Cunisi 50-161 | CEE-TNB-0057 AMENDMENT 5 | 54000920 | |
| Feeder Clamp Cu-Ni-Si 80/100-161 | CEE-TNB-0057 AMENDMENT 5 | 54001949 | M00002277 |
| Feeder Clamp Cu-Ni-Si 160-161 | CEE-TNB-0057 AMENDMENT 5 | 54004930 | M00054128 |
| Feeder Clamp Cu-Ni-Si 250-161 | CEE-TNB-0057 AMENDMENT 5 | 54004954 | |
| Feeder Clamp Cu-Ni-Si 50/63/70-107 | CEE-TNB-0081 AMENDMENT 4 | 54014849 | |
| Feeder Clamp Cu-Ni-Si 80/100-107 | CEE-TNB-0081 AMENDMENT 4 | 54014850 | |
| Feeder Clamp Cu-Ni-Si 160-107 | CEE-TNB-0081 AMENDMENT 4 | 54014862 | |
| Feeder Clamp Cu-Ni-Si 250-107 | CEE-TNB-0081 AMENDMENT 4 | 54014874 | |
| Bimetal Feeder Clamp Cunisi 160 Al-161Cu | BBG6147 | 54000401 |
Nylon Catenary Clips
| Nylon Catenary Clip 80 Mm Sq | CEE-TND-5 | 54006840 | |
| Nylon Catenary Clip 160 Mm Sq | CEE-TND-5 | 54016836 | M00043941 |
| Nylon Catenary Clip 250 Mm Sq | CEE-TND-5 | 54016848 | |
| Nylon Loop Catenary Clip | CEE-TND-11 | 54017070 |
Earth Wire Clamps
| Earth Wire Clamp 50 Mm Sq | CEE-TN-371 | 54002033 | M00075639 |
| Earth Wire Clamp 100 Mm Sq | CEE-TN-371 | 54015147 | |
| Earth Wire Clamp 160 Mm Sq | CEE-TN-371 | 54010498 | |
| Earth Wire Return Clamp 160 | BBB0789 | 54032589 | |
| Earth Return Clamp Bridges And Tunnels | CEE-TN-116 |
Contact Dropper Clips
| Dropper Clip 107 | CEE-TND-22 | 54006787 | |
| Dropper Clip 161 | CEE-TND-22 | 54017312 | M00012674 |
Rail and Mast Bonds
| Rail Bond Kit 13-19 Mm | 54020824 | M000105835 | |
| Mast Bond Kit 6-12 Mm | 54020848 | ||
| Signal Rail Bond 60 Kg 14 Mm Hole White | WAM DRG. CDG14-605-19-14 | 60003000 | |
| Signal Rail Bond 48 Kg Kg 13.5 Mm Hole Blue | WAM DRG. CDG14-485-14-13 | 60003002 | |
| Signal Rail Bond 57 Kg/Uic60 13.5 Mm Hole Green | WAM DRG. CDG14-575-16-13 | 60003003 | |
| Signal Rail Bond 60 Kg 13 Mm Hole Red | WAM DRG. CDG16-605-19-13 | 60003004 |
Bimetal Lugs
| Lug 160 Mm Sq | CEE-TNB-0028 VERSION 2 | 54009185 | M00064717 |
| Lug 500 Mm Sq | |||
| Lug 800 Mm Sq | WAM DRG. F688 |
Clevis and Steady Arm Sockets
| Clevis Socket | 54001420 | ||
| Steady Arm Socket | CEE-TNB-76 | 54001582 | M00064108 |
Runner and Trolley Line Clamps
| Runner Clamp Cu-Ni-Si 107 & 161 Contact | CEE-TNB-0086 | 54021943 | |
| Runner Clamp Cu-Ni-Si | CEE-TN-401 | 54004424 | |
| Runner Clamp Cu-Ni-Si | CEE-TN-400 | 54004436 | |
| Runner Stiffener Clamp Section Insulator | CEE-TN-209 SHEET 16 | ||
| Side Runner Clamp Section Insulator | CEE-TN-209 SHEET 17 | ||
| Trolley Line Clamp | WAM DRG. F486 |
Steady arm
| Steady Arm Assembly | CEE-TND-28 | 54011680 |
Railway Products Catalogue
Notice: All product images serve to illustrate our manufacturing capability and enquiries for products will be directed to our customers.
Transformer Products Catalogue
Notice: All product images serve to illustrate our manufacturing capability and enquiries for products will be directed to our customers.

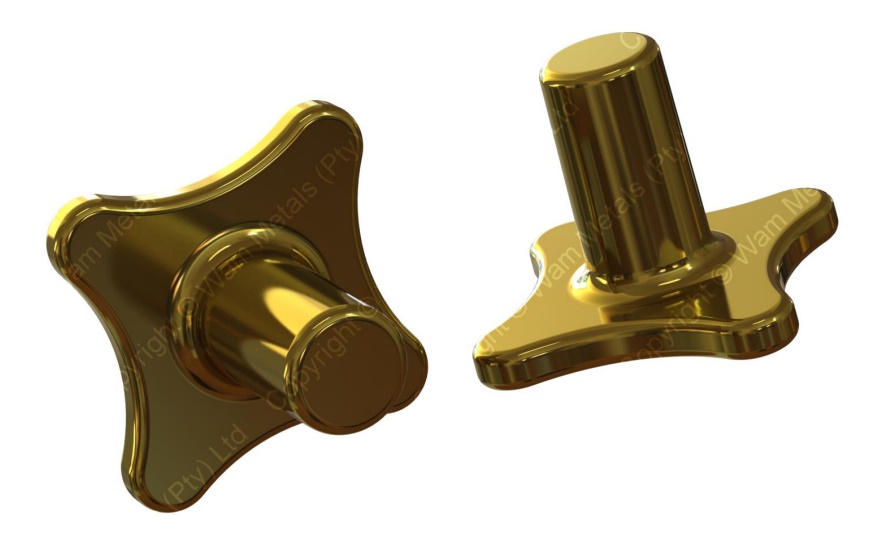

Valve Products Catalogue
